U3C Kansas Template

Guidelines on Utilizing U3C Kansas

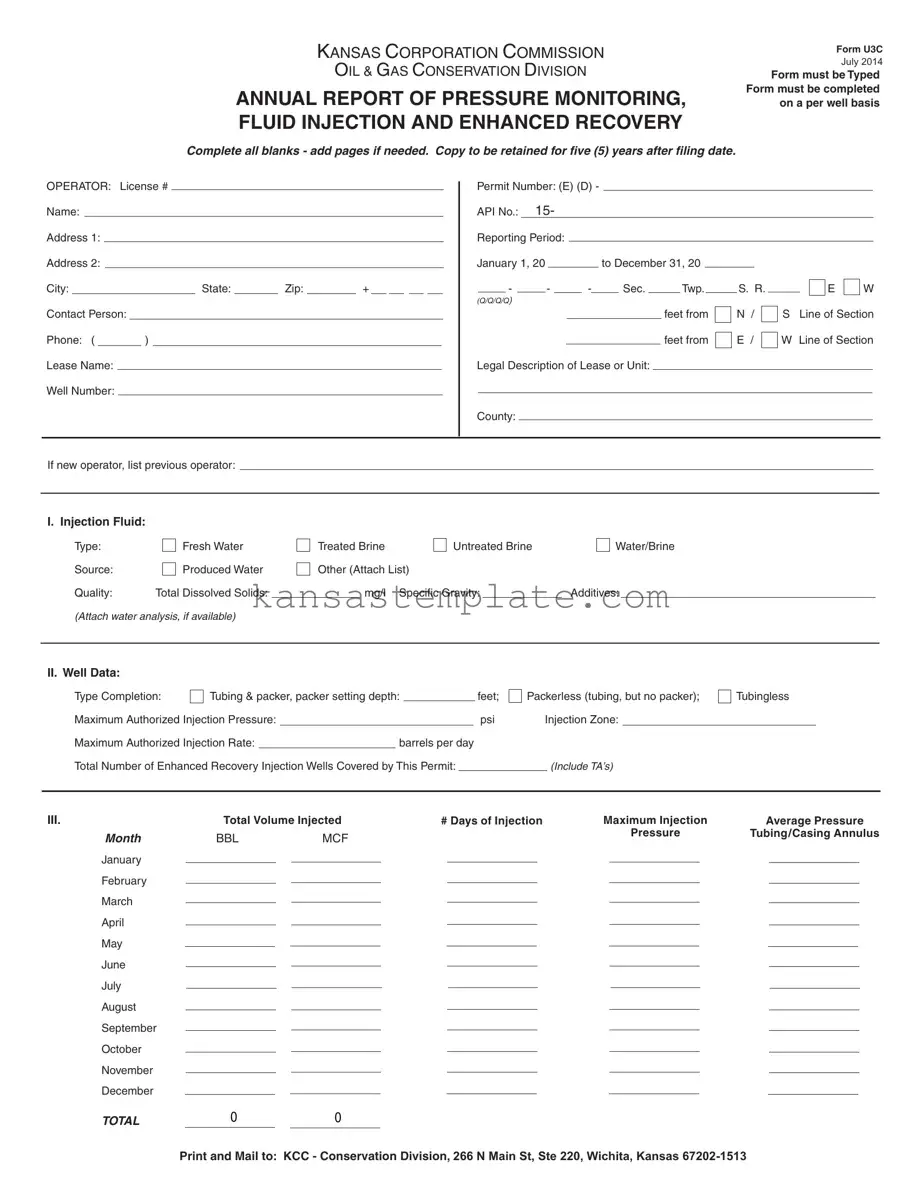

If you are preparing to fill out the Form U3C for the Kansas Corporation Commission Oil & Gas Conservation Division, you are taking an essential step in reporting on pressure monitoring, fluid injection, and enhanced recovery activities on a per-well basis. This document plays a crucial role in maintaining compliance with regulatory standards. Ensuring that all sections are accurately completed and that the form is kept on file for the required five years after its filing date is imperative. Below, you’ll find a detailed guide on how to complete this form.

1. Type all information clearly to ensure legibility.
2. Enter the License Number of the operator in the designated field.
3. Fill in the Operator Name, including Address 1, Address 2, City, State, and Zip code.
4. Provide a Contact Person name along with their Phone number.
5. Specify the Lease Name, Well Number, and Permit Number in the allocated areas.
6. Input the API Number following the format 15- - -.
7. Document the Reporting Period, indicating the start and end dates as January 1 and December 31 of the reporting year, respectively.
8. Under the legal description, specify the Section, Township, Range, and exact location of the well using the provided format.
9. For new operators, list the previous operator’s details if applicable.
10. In the section for Injection Fluid, identify the Type and Source of fluid, include any details such as Total Dissolved Solids, Specific Gravity, and Additives. Attach additional pages or documents for water analysis or lists of other substances if necessary.
11. Under Well Data, specify the Type Completion, including details such as tubing & packer, packer setting depth, Maximum Authorized Injection Pressure, and Injection Rate. Note the number of enhanced recovery injection wells covered by this permit and provide details on the Injection Zone.
12. For each month, report the Total Volume Injected (in BBL and MCF), the Number of Days of Injection, the Maximum Injection Pressure, and the Average Pressure in the Tubing/Casing Annulus. Ensure to add all monthly totals for an annual overview.
13. After ensuring all information is accurate and complete, print the form.
14. Mail the completed form to the KCC - Conservation Division at the address provided: 266 N Main St, Ste 220, Wichita, Kansas 67202-1513.
15. Remember to retain a copy of this form for five years after the filing date for your records.

By following these steps carefully, you will have accurately completed the Form U3C, aiding in the compliance with Kansas's regulatory requirements regarding oil and gas operations. This proactive measure supports environmental stewardship and operational safety in the state’s oil and gas sector.

What is the purpose of the U3C Kansas form?

The U3C Kansas form serves as an annual report for the Kansas Corporation Commission Oil & Gas Conservation Division. Its primary purpose is to monitor and report on the activities related to pressure monitoring, fluid injection, and enhanced recovery operations within the state. Operators are required to provide detailed information about each well under their license, including the type of fluids injected, well data, and injection volumes, to ensure compliance with regulatory standards and safeguard environmental and public health.

Who needs to file the U3C Kansas form?

Any operator of an oil or gas well in Kansas that engages in pressure monitoring, fluid injection, or enhanced recovery operations must file the U3C form. This requirement applies on a per well basis, meaning an operator with multiple wells must submit a separate report for each one.

When is the U3C form due?

The form must be filed annually, covering activities from January 1 to December 31 of the previous year. Operators are encouraged to submit their reports promptly after the end of the reporting period to ensure compliance with Kansas Corporation Commission regulations.

What information must be included on the U3C form?

Operators must include comprehensive details about each well, such as the operator's license number, address, and contact information, as well as the lease name, well number, and specific location. Additionally, information about the injected fluids, including type, source, quality, specific gravity, and any additives, must be provided. Well data, such as the type of completion, packer setting depth, maximum authorized injection pressure and rate, and total volume injected, are also required. A month-by-month breakdown of injection activities is necessary as well.

Can the form be submitted electronically?

As of the latest available information, the U3C form must be printed and mailed to the KCC Conservation Division in Wichita, Kansas. Operators should check with the Kansas Corporation Commission for any updates regarding electronic submission options.

What happens if an operator fails to file the U3C form?

Failing to file the U3C form or submitting incomplete or inaccurate information can result in penalties, including fines or suspension of operation licenses. The Kansas Corporation Commission enforces these regulations to ensure the responsible management of oil and gas resources and protect the environment.

Are there any attachments required with the U3C form?

Yes, if available, a water analysis should be attached to provide details on the total dissolved solids of the injected fluid. Additionally, if "Other" fluids are used, a list of those fluids must be attached. Operators should ensure that all necessary documentation is included to support the information provided in the report.

How long must operators retain copies of the U3C form?

Operators are required to retain a copy of the U3C form and any attachments for five (5) years after the filing date. This retention period helps facilitate audits or inquiries by the Kansas Corporation Commission or other regulatory bodies.

What is the significance of the maximum authorized injection pressure and rate?

The maximum authorized injection pressure and rate are critical for ensuring the safe operation of injection wells. These parameters help prevent overpressurization that could lead to well integrity issues or unintended migration of injected fluids, thus protecting underground sources of drinking water and maintaining operational safety.

Can an operator amend a submitted U3C form?

If an operator needs to amend information after submission, they should contact the Kansas Corporation Commission directly for guidance on the appropriate process. Amendments may be necessary if there were errors in the initial report or if significant changes to the injection operations occur within the reporting period.

When filling out the U3C Kansas Form, which is an annual report of pressure monitoring, fluid injection, and enhanced recovery for the Oil & Gas Conservation Division, individuals frequently make a series of common errors. These mistakes can lead to delays, incorrect filings, or other complications. Herein, these errors are delineated to assist in ensuring the accuracy and efficiency of the form submission process.

1. Not typing the form: The instructions specify that the form must be typed, which helps in maintaining the legibility and uniformity of submissions. Handwritten forms can be hard to read and may not be accepted.

2. Completing the form on an aggregate rather than a per-well basis: Each well requires a separate form to ensure detailed and specific reporting. Aggregating data might lead to oversight or inaccuracies concerning individual wells.

3. Leaving blanks on the form: It’s crucial to fill out all sections of the form. Missing information can lead to compliance issues or require further clarification, delaying the process.

4. Failure to add pages when needed: Considering the form must be completed thoroughly, if the space provided is insufficient, additional pages should be attached. This error could result in incomplete reports.

5. Not retaining a copy for the required duration: The form states that a copy must be kept for five years after the filing date. Failure to do so might result in complications if historical data is required for reference or auditing purposes.

6. Incorrect contact information: Providing outdated or incorrect contact details can lead to communication challenges, especially if there are queries regarding the submission.

7. Overlooking the need to attach additional documents: For instance, a water analysis or a list of other fluids injected may be mandatory. This oversight can lead to an incomplete application.

8. Not accurately reporting the injection fluids or additives: Misrepresentation or inaccuracies here can have regulatory or environmental implications.

9. Inaccurate well data, including misreported depths or pressures, which are critical for the oversight and safety of injection operations.

10. Not updating operator information if there has been a change: Failure to reflect new operator details, including a list of previous operators, can lead to legal and regulatory issues.

Addressing these mistakes involves careful review and verification of the information provided on the U3C Kansas Form. It is not only about regulatory compliance but also about ensuring the integrity and safety of oil and gas operations within the state. Thus, a methodical and comprehensive approach to completing this form is essential.

When handling oil and gas operations, especially in Kansas, the U3C form plays a crucial role in ensuring compliance with the Kansas Corporation Commission Oil & Gas Conservation Division's regulations on annual reporting of pressure monitoring, fluid injection, and enhanced recovery activities. However, to effectively navigate the regulatory environment and manage a well or a series of wells, several other forms and documents are often required alongside the U3C form. Each of these documents serves a specific purpose, ranging from permit applications to environmental impact assessments, contributing to a comprehensive approach to oil and gas well management and regulatory compliance.

• Form A – Application for Permit to Drill, Deepen, or Plug Back: Before initiating drilling operations, this form is essential for obtaining the necessary authorization from the state regulatory body.
• Form B – Well Completion or Recompletion Report and Log: After drilling, this document provides detailed information about the well's geological and technical aspects, including the depth, formations encountered, and completion details.
• Form C – Monthly Production Report: To maintain transparency and compliance, operators submit this form to report the volume of oil and gas produced from each well.
• Form D – Salt Water Disposal or Injection Well Application: This form is crucial for those seeking to dispose of or inject saltwater into subsurface formations, detailing the methods and locations for disposal or injection.
• Form E – Notice of Intention to Abandon and Plug: When a well reaches the end of its productive life, this document outlines the operator's plans for safely abandoning and plugging the well.
• Environmental Assessment Form: For projects that may impact the environment, this assessment helps identify potential effects and mitigation measures to protect local ecosystems.
• Lease Agreement: This legal document outlines the terms and conditions between the landowner and the operator for the exploration and production of oil and gas resources on the property.
• Insurance Certificates: To mitigate potential liabilities, operators must maintain adequate insurance coverage, as evidenced by these certificates.
• Emergency Response Plan: This document details procedures for responding to emergencies, such as spills or well control incidents, to minimize harm to workers, communities, and the environment.

Maneuvering through the documentation and reporting requirements is no small task. However, these documents collectively contribute to the responsible management and oversight of oil and gas operations. Compliance with these requirements not only ensures the operational integrity of wells but also aids in the protection of public health and the environment. Through diligent preparation and submission of the necessary documents, operators can effectively meet their regulatory obligations and contribute to the sustainable development of natural resources.

The U3C Kansas form, utilized by the Kansas Corporation Commission Oil & Gas Conservation Division for the annual reporting of pressure monitoring, fluid injection, and enhanced recovery activities, shares similarities with various other regulatory documents. These documents, while distinct in their application, parallel the U3C in terms of structure, required information, and purpose. This comparison underscores the uniformity in regulatory reporting across different jurisdictions and industries.

One analogous document is the UIC Class II Injection Well Annual Reporting Form used by the Environmental Protection Agency (EPA). Like the U3C form, the UIC Class II form mandates detailed reporting on the operational aspects of injection wells, encompassing fluid types, volumes injected, and pressures maintained over the reporting period. Both forms serve a regulatory function, ensuring adherence to environmental and operational standards. The comparison underscores the careful monitoring required for injection wells, reflecting broader environmental conservation goals.

Another document with similarities to the U3C form is the Drilling and Production Operations Annual Report required by many state-level oil and gas regulatory agencies. This document typically requires information on the well's operational status, including drilling, completion, and production details over the year. Similar to the U3C, it requires operators to provide specifics on fluid types and volumes, though its scope extends beyond injection practices to include overall well productivity. This parallel highlights the comprehensive approach to oversight across the lifecycle of wells, from drilling through to injection and production.

Additionally, the State Water Board’s Annual Water Quality Report Form shares objectives with the U3C form. While it focuses more broadly on water quality metrics across a range of industries and applications, it requires detailed reporting on the types, sources, and disposal methods of water and fluids, akin to the injection fluid details in the U3C. This similarity reflects a shared emphasis on protecting water quality and managing environmental impacts, underscoring the cross-sector importance of detailed environmental reporting.

When filling out the U3C Kansas form, which is required by the Kansas Corporation Commission Oil & Gas Conservation Division for annual reporting of pressure monitoring, fluid injection and enhanced recovery, it's critical to adhere to specific guidelines to ensure the submission is accurate and compliant. Below are several dos and don'ts to guide you through the process.

• Do ensure that the form is typed. Handwritten forms may not be accepted due to readability concerns.
• Do complete the form on a per-well basis. Each well has unique characteristics and data that need separate reporting.
• Do fill in all blanks provided on the form. If a section does not apply, consider noting it as not applicable (N/A) rather than leaving it blank.
• Do add additional pages if the space provided is insufficient for your complete responses. Ensuring all data is reported is critical for compliance.
• Do retain a copy of the form for five (5) years after the filing date. This retention period is crucial for any future reference or compliance verification.

• Don't submit the form without verifying all the data for accuracy and completeness. Inaccuracies can lead to compliance issues or need for resubmission.
• Don't forget to attach additional documents as required, such as water analysis reports or lists of additives. These attachments are an integral part of the reporting process.
• Don't overlook the importance of printing and mailing the completed form to the specified address: KCC - Conservation Division, 266 N Main St, Ste 220, Wichita, Kansas 67202-1513. Electronic submissions may not be accepted unless specified.

Adhering to these dos and don'ts will help ensure the U3C Kansas form is filled out correctly and complies with the regulations set by the Kansas Corporation Commission Oil & Gas Conservation Division. It is always advisable to review the form thoroughly before submission to prevent any delays or complications in the reporting process.

There are several misconceptions about the U3C Kansas form used for reporting annual pressure monitoring, fluid injection, and enhanced recovery in oil and gas operations. Understanding these misconceptions is crucial for operators to ensure compliance and accuracy in their reporting to the Kansas Corporation Commission's Oil & Gas Conservation Division. Here are ten common misunderstandings:

• Misconception 1: The Form Is Optional – Some may believe that filling out and submitting the U3C Kansas form is optional. However, it is a mandatory report that must be submitted annually for every well that engages in pressure monitoring, fluid injection, or enhanced recovery operations.

• Misconception 2: Electronic Submission Is Allowed – Despite the digital age we live in, the U3C form must be printed and mailed to the KCC Conservation Division. Operators cannot submit the form electronically, which can be a surprise in today's online-focused regulatory environment.

• Misconception 3: One Form Per Operator Is Sufficient – It's a common misunderstanding that one form can cover all wells under an operator. However, the form must be completed on a per well basis, highlighting the individual attributes and activities of each well.

• Misconception 4: Detailed Water Analysis Is Not Required – While the form requests basic information about the injection fluid, including its source and total dissolved solids, there's often an assumption that a detailed water analysis is optional. If available, attaching a water analysis is crucial for providing the KCC with comprehensive water quality data.

• Misconception 5: Additives Do Not Need to Be Disclosed – The form requires disclosure of any additives in the injection fluid. This requirement is sometimes overlooked, but transparency about additives is vital for environmental and safety monitoring.

• Misconception 6: Reporting Period Can Be Customized – There might be confusion that the reporting period can be adjusted to match the fiscal year or other reporting periods used by the operator. The form specifies a January 1 to December 31 reporting period that must be adhered to.

• Misconception 7: Maximum Authorized Injection Rate and Pressure Can Be Approximated – Accuracy is paramount when reporting the maximum authorized injection rate and pressure. Estimations or approximations can lead to compliance issues.

• Misconception 8: Only Active Injection Days Require Reporting – The form asks for the total number of days of injection, which includes all days within the reporting period, not just the days when injection activities occurred.

• Misconception 9: The Form Covers Only Enhanced Recovery Injections – While enhanced recovery injections are a significant component, the form also encompasses pressure monitoring and other fluid injections, not solely processes directly related to enhanced recovery.

• Misconception 10: Paper Copies Need Not Be Retained – There is often a misunderstanding regarding the retention of paper copies of the filed form. Operators are required to keep a copy for five years after the filing date, ensuring records are available for potential future audits or reviews.

Clarifying these misconceptions ensures that operators maintain compliance with the Kansas Corporation Commission’s regulations, thereby supporting responsible oil and gas resource management in the state.

Filling out and using the U3C Kansas form is an essential task for operators within the state's oil and gas sector. Here are 10 key takeaways to help navigate the process:

• The U3C form is issued by the Kansas Corporation Commission Oil & Gas Conservation Division and serves as an annual report of pressure monitoring, fluid injection, and enhanced recovery.
• Operators are required to type the form and ensure it's completed for each well, indicating that one form per well is mandatory.
• Completing all blanks is essential, and operators can add extra pages if necessary to provide comprehensive information.
• A copy of the completed form must be retained for five years from the filing date, ensuring compliance with record-keeping requirements.
• The form requires detailed operator information, including license number, name, address, contact person, lease name, well number, and permit number, ensuring accurate identification and contact information.
• It mandates reporting on injection fluid types, such as fresh water, produced water, treated brine, untreated brine, water/brine, or other, and may require an attached water analysis.
• Details on well data, including type of completion, tubing and packer details, maximum authorized injection pressure, and injection rate, are critical for assessing well integrity and operational parameters.
• Operators must report the total volume injected and the number of days of injection, alongside the maximum and average injection pressures, providing a comprehensive view of the injection process throughout the year.
• The legal description of the lease or unit, including county, section, township, range, and precise location, ensures accurate identification of the well site.
• The form must be printed and mailed to the specified address of the KCC - Conservation Division in Wichita, Kansas, highlighting the importance of traditional submission methods for official documentation.

Understanding these key aspects of the U3C Kansas form ensures that operators can accurately and efficiently comply with state regulations governing oil and gas well operations.
